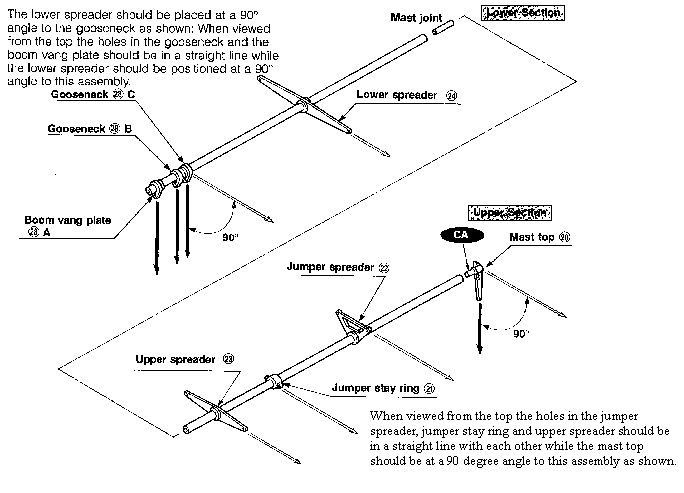

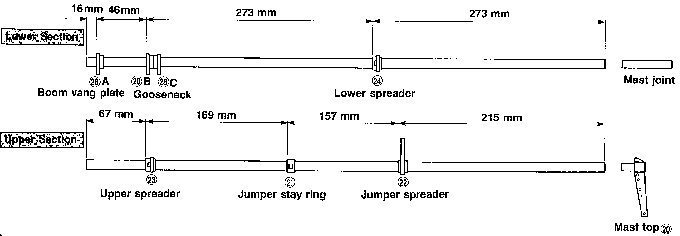

Carefully align them as shown below .
Apply a few drops of CA glue to the top and bottom of each fitting at the crack between the mast and fitting.
Avoid letting glue enter the small holes in the spreaders, gooseneck and vang plate fittings.
After the fittings are installed, assemble the two halves. The steel mast joint, should fit snugly. If it doesn't spread open the mast joint by driving a tool such as nail set or large Phillips screwdriver down each end with a hammer. CA glue the joint connector into one half of the mast. Then line up spreaders and slip the other half of the mast in place. There is no need to glue the second half in place if it is snug.
|
|
|
|
|
|
|
