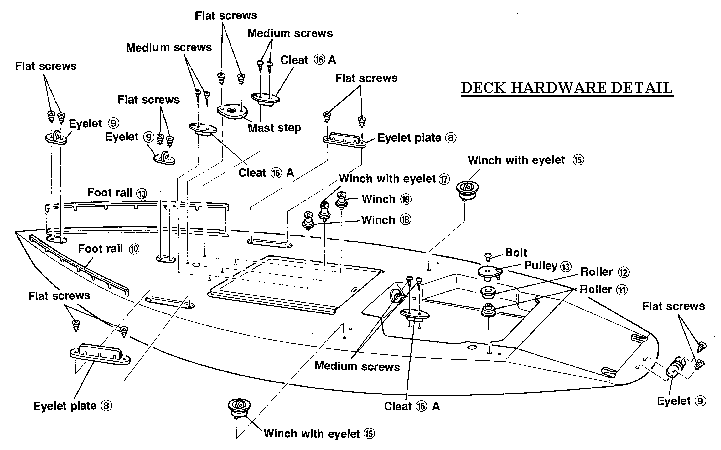

1. DO NOT use glue to attach the five screw attached "eyelets". Use only the screws.
  2. There are two cleats mounted one on either side of the mast step.  Drill a 1/8" diameter hole through the side of each cleat between the screws.
  3. Install the pulley on the port aft deck using parts 11, 12, and 13. Part 13 has one post.
  4. Drill the hole in the steering pedestal, Part 7. Install in the cockpit using CA.
  5. NOTE - The pre-formed holes in the cockpit floor for the cleat are not correctly spaced. For an easier installation drill one new screw hole with a 1/32" drill bit.

STEERING PEDISTAL DETAIL

TIP OPTION -
You can lower the profile of the toe rails by cutting off the feet flush with the rail bottom and  then glueing them to the deck flush.
